North Side Radiant Floor Heating
Lyle Jory of Alternative Combined Energy Systems, the same company that did the original in floor heating on the south side of the house before the winter now completes the system. For more information on the in-floor heating system you can contact Lyle at (416) 463-5835 or (888) 773-6893.

<Previous Page - Next Page>

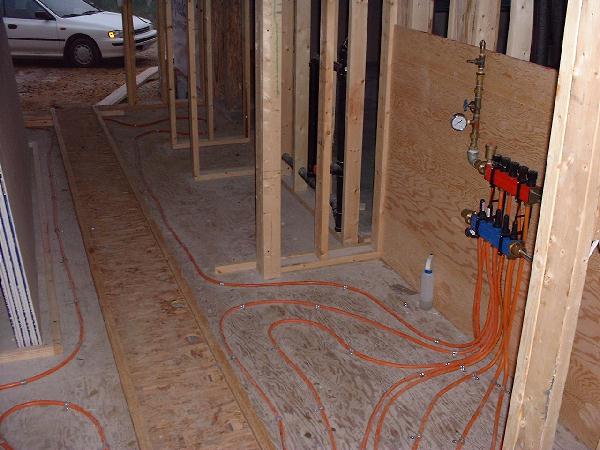

May 17, 2001 - Most of the insulation and drywalling has been completed. The north part of the in-floor heating system is now being installed on the ground floor and will also be installed on the 2nd floor on the south side. The tubing is installed on top of the plywood and then concrete is poured over the tubing. Finally the finished flooring will be installed.

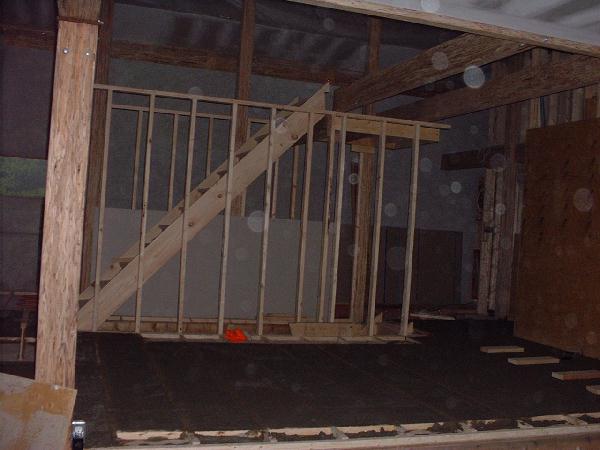

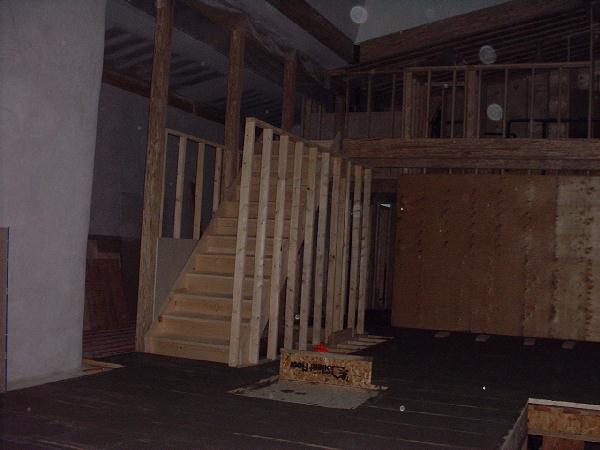

May 17, 2001 - The stairs to the second floor arrived and the framing for the kitchen cabinets has been prepared. The bridge over the kitchen can be seen although the railing has not yet been built.

April 21, 2001 - The radian floor heating here has been covered by a 1.5 inch thick layer of concrete.
